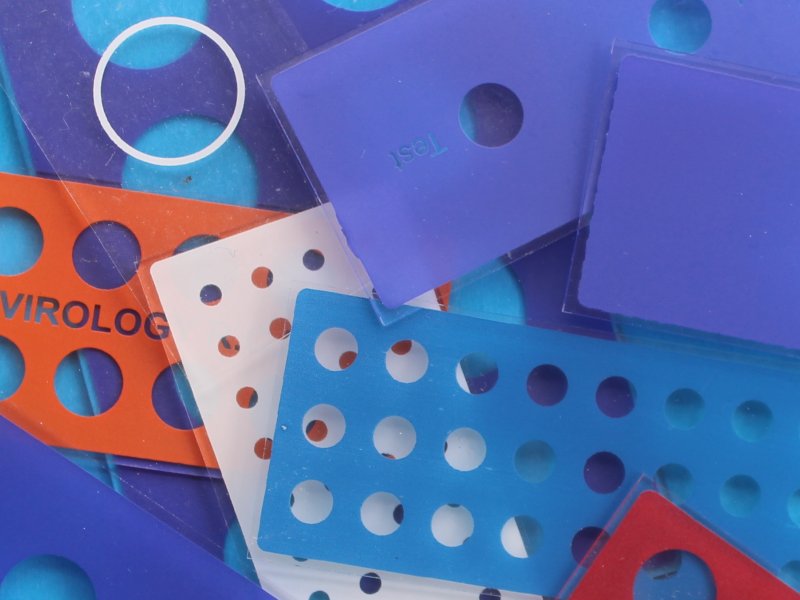

Printed Microscope slides
Have an application for a Printed Microscope Slide solution?

For Laboratory and Industry, select from our extensive range of design patterns or we can create something for your exact needs.

Available slide designs are suitable for IFA Histology Cytology Immunology etc. coated in hydrophobic or super hydrophobic inks. Tasman Scientific slides are manufactured with premium materials with high resistance to hard laboratory chemicals.

slide splash

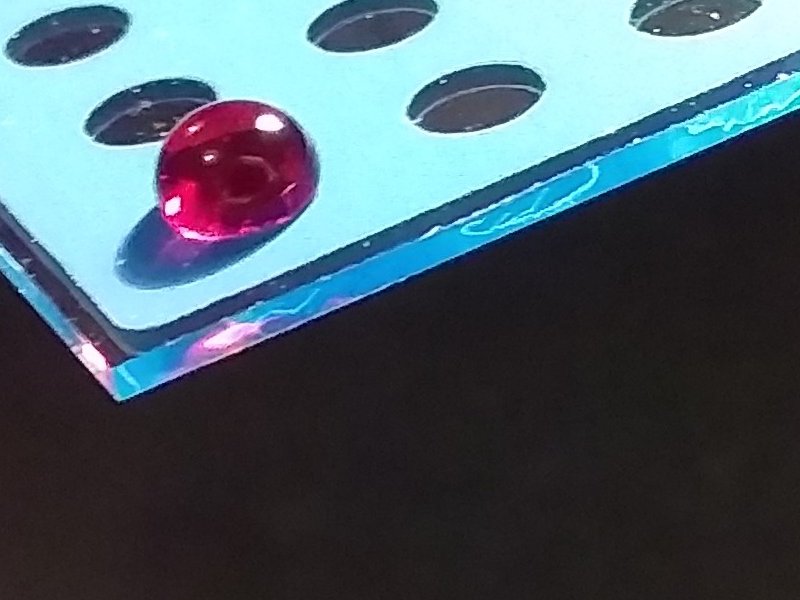

Teflon™ PTFE superhydrophobic coating

Premium

  • Contact angles to water in excess of 140 deg.
  • High chemical and solvent resistance.
  • Minimise cross contamination and increases microlitre volume.
  • Standard colours Blue or white, others are available on request.
PTFE_look

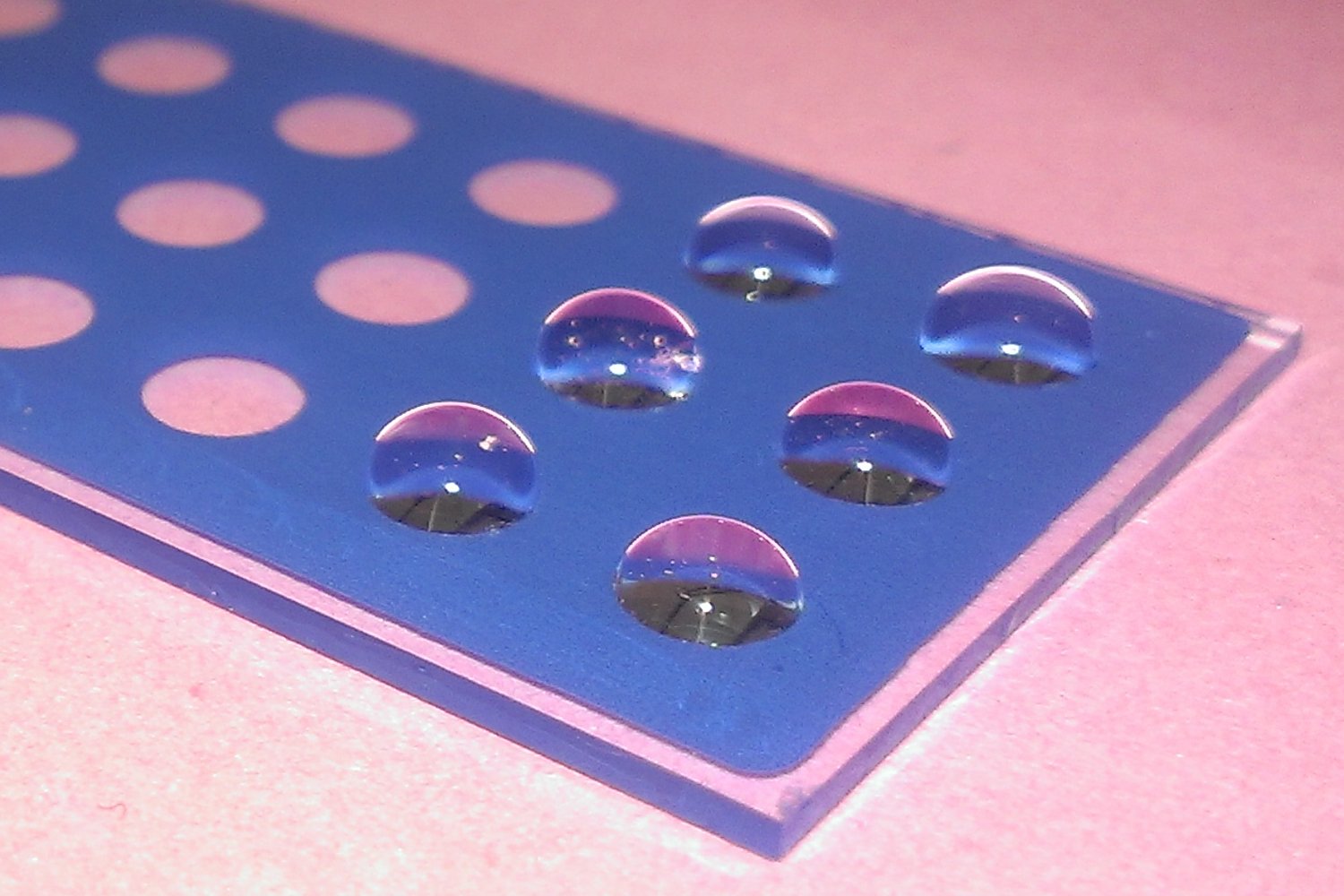

Epoxy hydrophobic coating

Economical

  • Contact angles to water to 40 deg.
  • Autoclavable with high resistance to laboratory solvents including Acetone.
epoxy coating

Glass materials, sizes and adhesive types.

Glass materials

Standard slides are MENZEL-GLASER 26 x 76 mm 1.0 mm thick
(ISO Norm 8037/I) Frosted end extra white glass.

Others available are:

  • Plain glass ie. no frosting.
  • 1" x 3" (25.4 x 76.2mm)
  • 2" x 3" (50.8 x 76.2mm) plates.

Adhesive glass

Two types of adhesive glass are available.

Trajan

Specialised coating that produces the positively charged surface required for histology, cytology and microbiology applications.

Polysine™

Proprietary Thermo Scientific coating from Menzel.
Derived from the chemistry for Poly-L-Lysine coating, attracts frozen and paraffin embedded tissue sections.
Note: Only available in 1" x 3" glass size with frosted tab.

home Available designs.

Slides are processed to order with fresh stock with MOQ of 10 boxes of 50pcs. (500 slides)
Samples are available on request.

Teflon™ or Epoxy. Size 26x76mm

Tap thumbnail images for details.

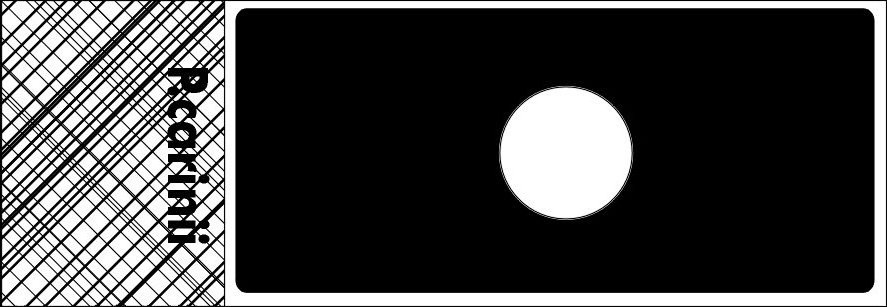

cat. MIC017
wells 1
dia 11mm
Plain (no graphics)
MIC017
MIC031
MIC025
MIC064
MIC042
MIC047
MIC024
MIC026
MIC020
MIC040
MIC052
MIC058
With graphics.
MIC027
MIC009
MIC050
MIC049
MIC054
MIC056
MIC024

Printed plate 50x76mm (2"x3")

MICA065 Agglutination plate for immunological reaction testing.
Teflon or Epoxy coated.
cat:  MICa065
wells:  8x13mm

Coating colours

Epoxy colours.
deepBlue deepRed lightOrange green black grey white
Teflon™ colours.
grey white Other colours available on request.

Our advantage:

  • Local Australian manufacture.
  • Low cost setup.
  • Fast! 2-3 weeks, start to delivered slides.
  • Low MOQ - 500pcs.
  • Hydrophobic or Superhydrophobic coating.
  • Ink selection colour range options.
  • Glass material size and frosting options.
  • High resolution for fine detail.
Last updated December 2018 - Copyright Tasman Scientific
